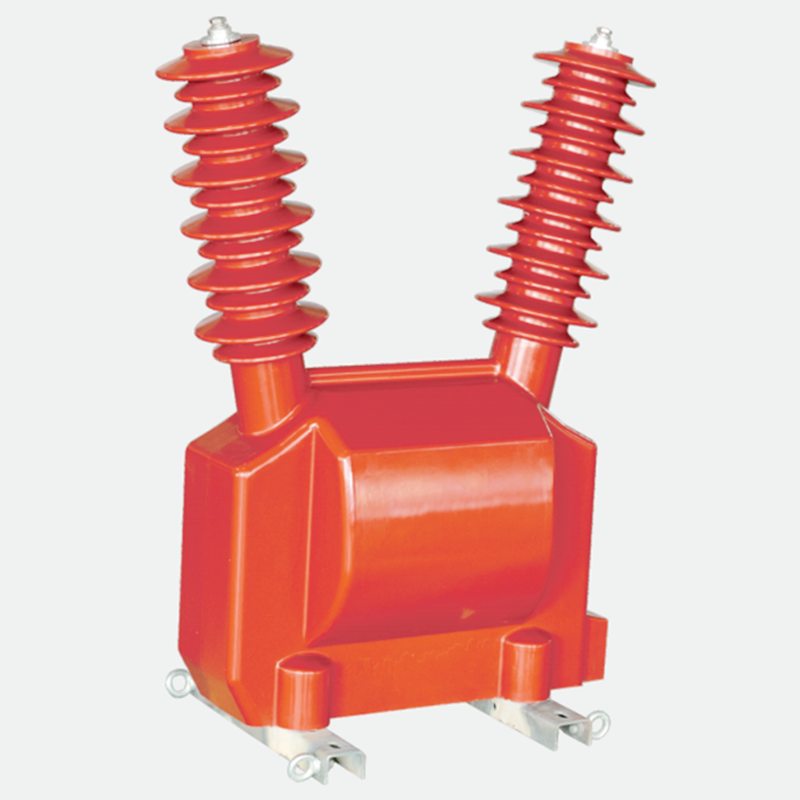

Type description:
E--Company name:Enboli
J--Voltage transformer
D--Single-phase
Z--Casting insulation
W--Outdoor type
33-Rated voltage(kV)
R--With melt tube
Technical data
Type | Rated voltage ration(V) | Accuracy class and rated secondary output(VA) | Max. output(VA) | Rated insulation level(kV) | Wiring diagram | ||||||
0.2 | 0.5 | 1grade | 3 grade | 0.2/0.2 | 0.5/0.5 | 6p | |||||
0.20.5 | |||||||||||
EJDZW-33 | 33000/100/100 | 30 | 50 | 300 | 600 | / | / | / | 1200 | 36/70/170 | Fiagure 1-2 |
33000/100/220 | / | / | / | / | 30/30 30/40 | 60/60 | / | 600/600 | Fiagure 3-4 | ||
Overall dimension drawing
Wiring diagram

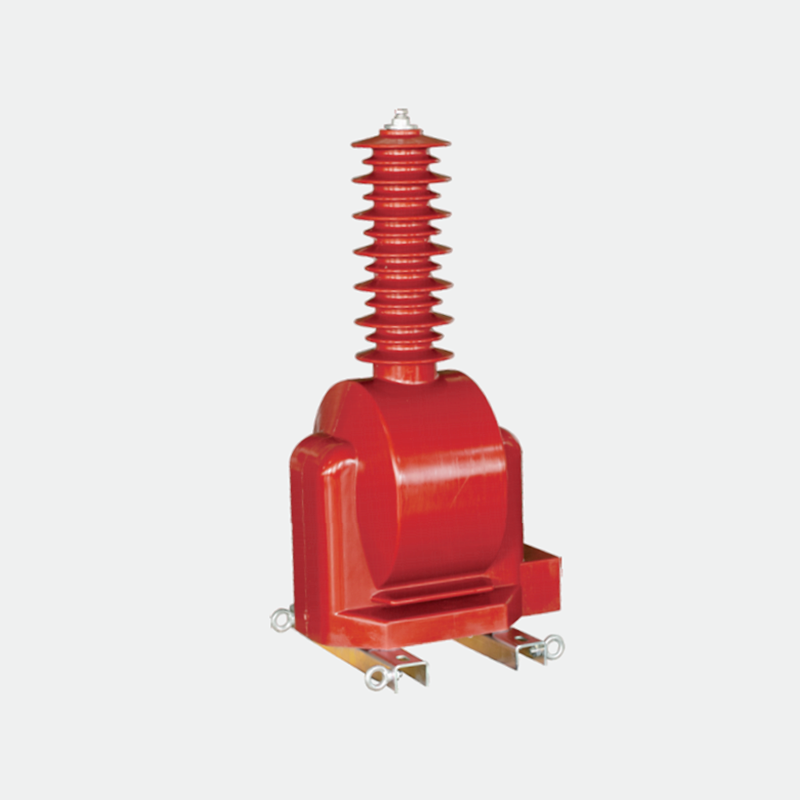

Type description:
E--Company name:Enboli
J--Voltage transformer
D--Single-phase
Z-Casting insulation
X--Residual,voltage,winding
W--outdoor type
33R--Rated voltage(kV)
Technical data
Rated voltage ration(V) | Accuracy class and rated secondary output(VA) | Max.output (VA) | Rated insulation Level(kV) | Wiring diagram | ||||||
0.2 | 0.5 | 1grade | 3grade | 0.2/0.2 | 0.5/0.5 | 6P | ||||
0.2/0.5 | ||||||||||
 | 20 | 30 | 50 | 100 | / | / | 100 | 500 | 36/70/170 | Fiagure 1 |
 | / | / | / | / | 20/20 20/30 | 30/30 | 100 | 300/300 | Fiagure 2 | |
Overall dimension drawing
Wiring diagram
FAQ:
What is outdoor voltage transformer?
The VOG outdoor voltage transformer is designed for metering line-to-ground voltage.
Reduce weight with high performances. Resistant to outdoor conditions.
Hydrophobic material offers superior outdoor performance and minimizes the potential for flashover.
What is the difference between CT and VT transformers?
CT is used as the abbreviated name to represent a current transformer.
PT (or sometimes VT) is used to denote a potential transformer.
CT reduces the large current to a safer and measurable level. PT reduces a high voltage to a safer and measurable level.
