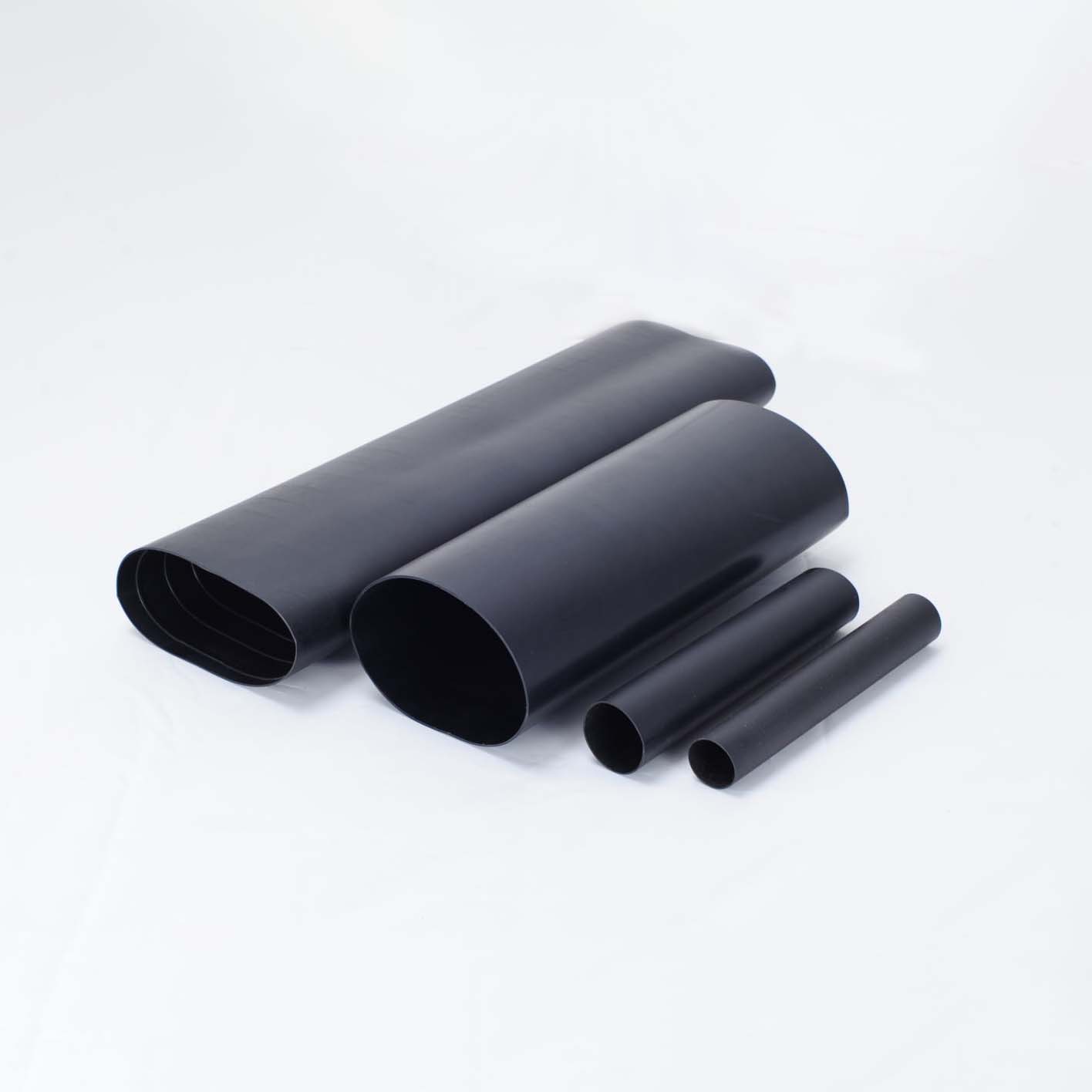

| ■Stress Control Heat Shrinkable Tubing(RCYL)■ |
 |
It is used in the high-voltage power cable accessories to take the effect of sieress control
|
Property |
Typical data |
Propery |
Typical data |
|
Hatdness |
80(shoea A) |
Dielectric c9onstant |
＜2.0-2.5 |
|
Tensile strength |
10Mpa |
Dielectric ullage |
2.5 |
|
Elongation at break |
300% |
Shrink temperature |
12.-140℃ |
|
Volume resistance |
1×1014Ω.cm |
Shrink ration(dia) |
250% |
|
Dielectric strength |
≥20KV/mm |
Longitudinal shrinkage |
±5% |
|
Size mm |
As supplied |
After recovered |
Length |
Color |
|
Inside diameter(Min) |
Inside diameter(Max) |
wall thickness(Min) |
|
RCYL-30/10 |
30±1 |
＜10 |
2.0±0.2 |
100 |
Black |
|
RCYL-35/14 |
35±1 |
＜14 |
|
RCYL-42/18 |
42±1 |
＜18 |
|
RCYL-50/20 |
50±1 |
＜20 |
|
RCYL-50/20 |
50±1 |
＜20 |
2.5±0.2 |
|
RCYL-60/25 |
60±1 |
＜25 |
|
RCYL-70/30 |
70±1 |
＜30 |
|
