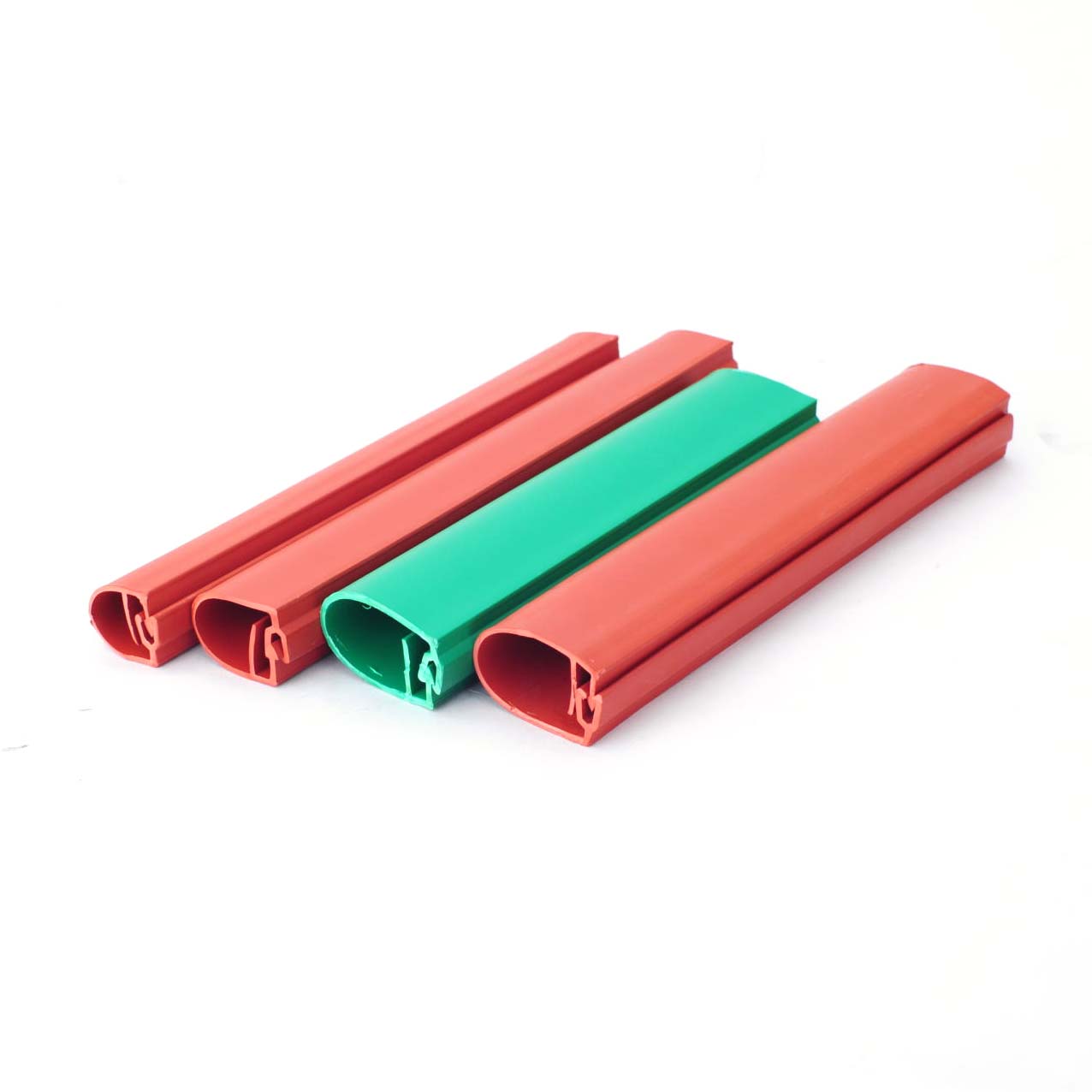

The RCMLC cover is a cold applied wraparound cover that provides retrofit insu-lation for overhead conductors to help prevent electrical outages caused by incidental contact from tree branches or wildlife The RCMLC cover may be applied selectively in a aingle location.
The tool may be manually or automati-cally operated using a gasoline powered drill The tool forms closes and feeds the RCMLC cover along the conductor with speed and consistency
The RCMLC hand tool allows for quick installation on short lengths of conductors especially in substations.
|
Key material properties |
Requirement |
|
Physical |
Tensile Strength |
10 Mpa min.145 psi min |
|
Ultimate Elongation |
200% min |
|
Abrasion Resistance |
20%max.thickness loss |
|
Low Temperature Impact |
No cracking at -20℃ |
|
Electrical |
Dielectric Strength |
217kv/cm@1.27mm
550v/mil min@0.050 |
|
Tracking and Erosion |
NO tracking or erosion |
|
Resistance |
To top surface or flame |
|
|
Failure after:200 minutes |
|
Chemical |
Water Absorption |
1%max after 336hrs
At23℃ |
|
Resistance to bird guano |
10Map min145psi |
|
-Tensile Strength |
100% min |
|
-Ultimate to Cable Grease |
|
-Tensile Strength |
10 Mpa min.1450psi |
|
-Ultimate Elongation |
100% min |
|
Thermal |
Accelerated Aging |
168 hours at(150±2)℃ |
|
-Tensle Strength |
10Mpa min 1450psi min |
|
-Ultimate Elongation |
100%min |
|
Thermal Endurance |
105℃ min | |
