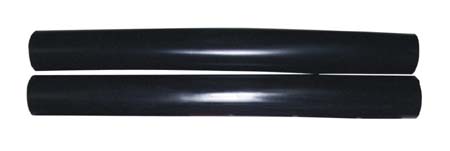

Heat shrinkable protective jacket tubing(RCHT)

如果您有任何问题可以联系我们！

联系我们

产品详情
返回

■Heat shrinkable protective jacket tubing(RCHT)■

RCHT heat shrinkable protection jacket tube has good insulation and ruptuing resistance it suitable for mend for mend of cable out-layer protection and out-layer protcction of intermediate connecting

Technical Data

Size mm	As supplied		After recovered
Size mm	I.D	Wall thickness	I.D	Wall thickness
RCHT-15/7	≥14	0.6	≤7	1.7±0.25
RCHT-20/9	≥18	0.7	≤9	1.8±0.25
RCHT-25/9	≥23	0.5	≤9	1.7±0.25
RCHT-30/11	≥28	0.7	≤12	2.2±0.25
RCHT-35/13	≥33	0.8	≤14	2.2±0.25
RCHT-40/15	≥38	0.8	≤16	2.2±0.25
RCHT-45/18	≥43	0.8	≤18	2.2±0.25
RCHT-50/22	≥48	1.2	≤22	2.9±0.25
RCHT-60/22	≥58	1.0	≤22	2.8±0.25
RCHT-80/27	≥75	1.0	≤28	3.2±0.40
RCHT-100/38	≥93	1.5	≤39	4.3±0.50
RCHT-120/44	≥118	1.5	≤45	4.5±0.50
RCHT-140/49	≥138	1.9	≤50	5.0±0.50
RCHT-160/66	≥150	2.0	≤67	5.5±0.50
RCHT-200/70	≥195	1.5	≤70	5.5±0.50

Technical Data

Property	Typical data
Hatdness	≥90Shoea A
Tensile strength	≥13Mpa
Elongation at break	≥300%
120℃168h Heat aging 120℃168h	K1>0.8k2>0.7
Water aisorption	≤0.1%
Volume resistance coefficient	≥10¹⁴Ω.cm
Breakdow strength	≥20
Shrinkape temperature	120-130℃
