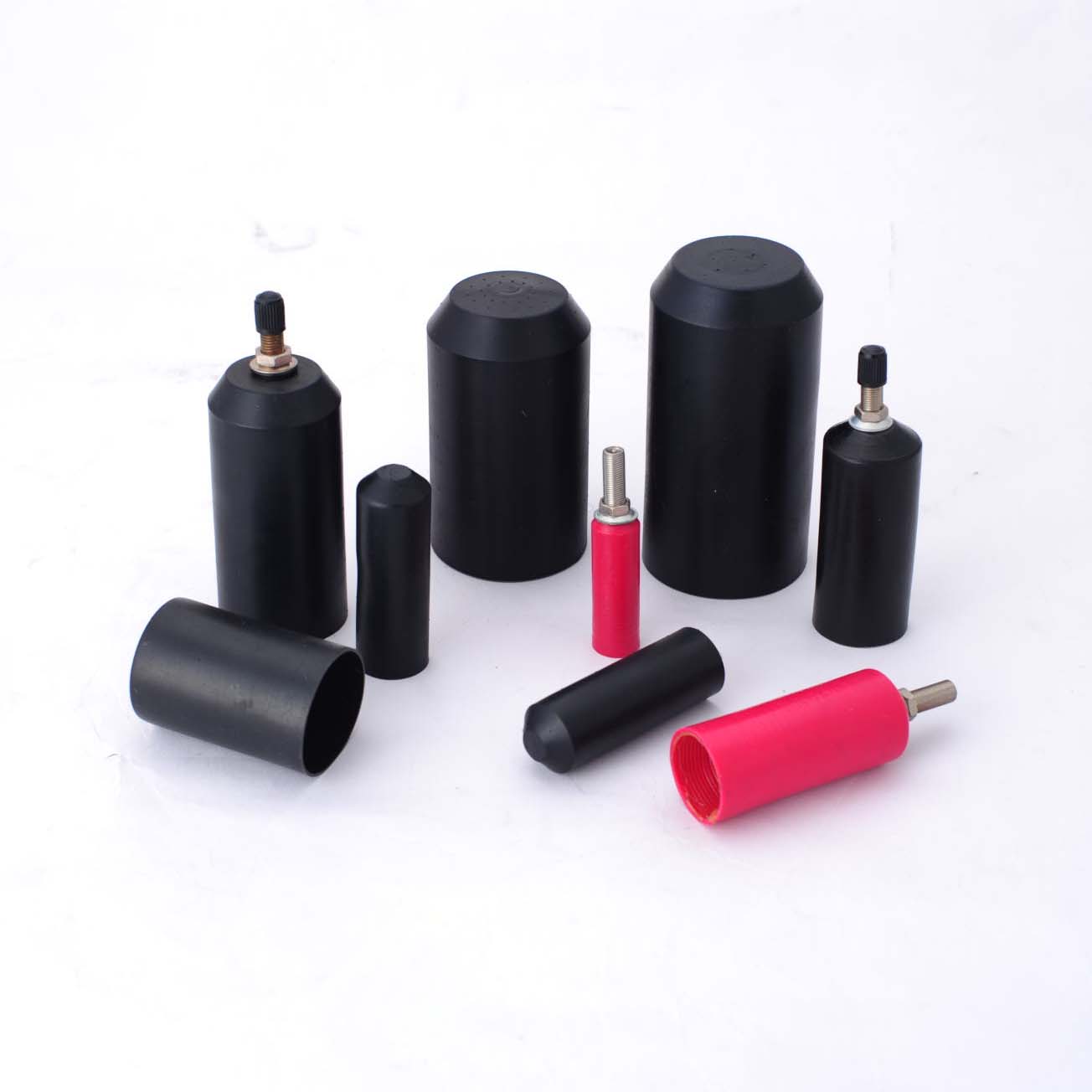

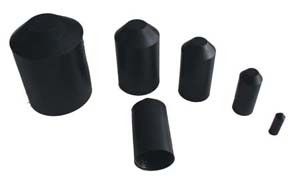

RECD offers an economical means of sealing the and of power cable with a completely watertight seal The intenal surface of the and cap has a layer of spiral coated hot melt adhesive which retains its flexible properties after recovery RCED is recommended for application both in open air and on underground power distribution calbles with PVC Lead or XLPE sheaths.
·Effectively offering protection against oxidation ozone UV-radiation etc
·Coated with hot melt adhesive to ensure environment seal
·Easily to fit into the cable and
·Minimum fully shrink temperature:120℃
|
Property |
Test Method |
Typical Data |
|
Operating temperature |
IEC 216 |
-55℃ to+110℃ |
|
Tensile strength |
ASTM D 638 |
>14Mpa |
|
Elongation at break |
ASTM D 638 |
>400% |
|
Density |
ASTM D 792 |
1.05 |
|
Elongation at break after aging |
150℃/168hrs |
>300% |
|
Dielectric strength |
IEC 243 |
>15kv/mm |
|
Volume resistance |
IEC 93 |
>1014Ω.cm |
|
Size mm |
As supplied(mm) |
After recovered(mm) |
Cable diameter(mm) |
|
D(Min) |
D(Min) |
A(±10%) |
L(±10%) |
Dw(±5%) |
|
RCEC-12/4 |
12 |
4.0 |
15 |
40 |
2.2 |
4-10 |
|
RCEC-14/5 |
14 |
5.0 |
18 |
45 |
2.2 |
5-12 |
|
RCEC-20/6 |
20 |
6.0 |
25 |
55 |
2.8 |
6-16 |
|
RCEC-25/8.5 |
25 |
8.5 |
30 |
68 |
2.8 |
10-20 |
|
RCEC-35/16 |
35 |
16.0 |
35 |
83 |
3.3 |
17-30 |
|
RCEC-40/15 |
40 |
15.0 |
40 |
83 |
3.3 |
18-32 |
|
RCEC-55/26 |
55 |
26.0 |
50 |
103 |
3.5 |
28-48 |
|
RCEC-75-36 |
75 |
36.0 |
55 |
120 |
4.0 |
45-68 |
|
RCEC-100/52 |
100 |
52.0 |
70 |
140 |
4.0 |
55-90 |
|
RCEC-120/60 |
120 |
60.0 |
70 |
150 |
4.0 |
65-110 |
|
RCEC-145/60 |
145 |
60.0 |
70 |
150 |
4.0 |
70-130 |
|
RCEC-160/82 |
160 |
82.0 |
70 |
150 |
4.0 |
90-150 |
|
RCEC-200/90 |
200 |
90.0 |
70 |
150 |
4.2 |
100-180 |
