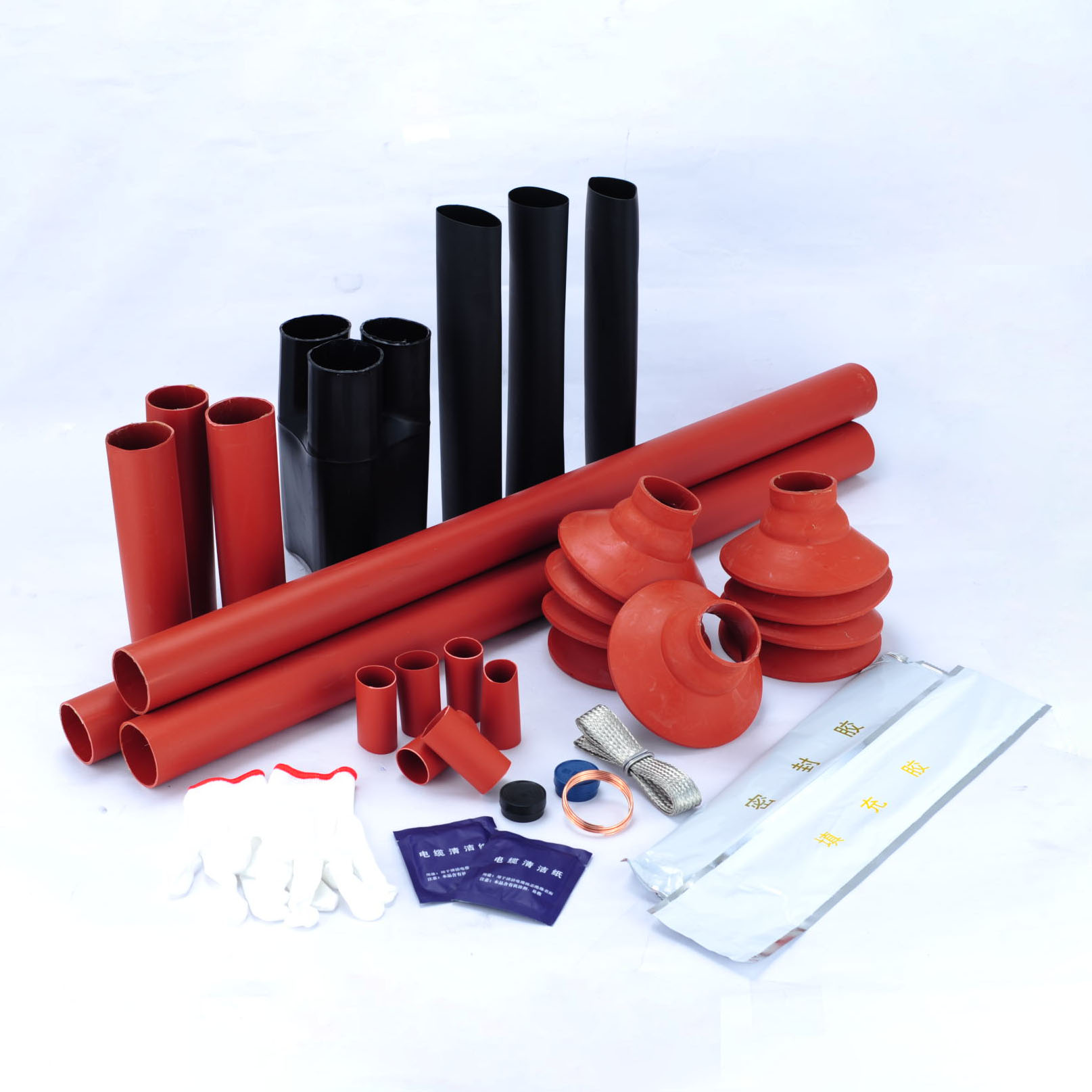

26/35kv Heat Shrinkable Cable Accessories

如果您有任何问题可以联系我们！

联系我们

产品详情
返回

■26/35kv Heat Shrinkable Cable Accessories■

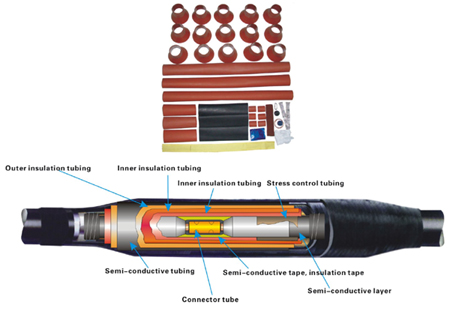

For 26/35KV PVC、XLPE single core. three cores power cable indoor and outdoor termination and straight through joint.

Technical Data

property	Typical data	Evaluation
(kv/1min)power frequency dry-state withst and voltage	105	NO flashover and puncture
(kv/1min)power frequency damp-state withst and voltage	105	NO flashover and puncture
(kv/4h)power frequency long-term withst and voltage	104	NO flashover and puncture
(kv/±10次)Surge withst and voltage	250	ON puncture
(kv/15min)DC withst and voltage	156	NO flashover and puncture
(kv、pc)part discharge	＜20	pass

26/35KVProduct Dimensions

mm2 Size of conductor	Indoor termination		Outdoor termination		Straight through joint
mm2 Size of conductor	Single Core	Three Cores	Single Core	Three Cores	Single Core	Three Cores
25、35、50	NSY-35/1.1	NSY-35/3.1	WSY-35/1.1	WSY-35/3.1	JSY-35/1.1	JSY-35/3.1
70、95、012	NSY-35/1.2	NSY-35/3.2	WSY-35/1.2	WSY-35/3.2	JSY-35/1.2	JSY-35/3.2
150、185、240	NSY-35/1.3	NSY-35/3.3	WSY-35/1.3	WSY-35/3.3	JSY-35/1.3	JSY-35/3.3
300、400	NSY-35/1.4	NSY-35/3.4	WSY-35/1.4	WSY-35/3.4	JSY-35/1.4	JSY-35/3.4
