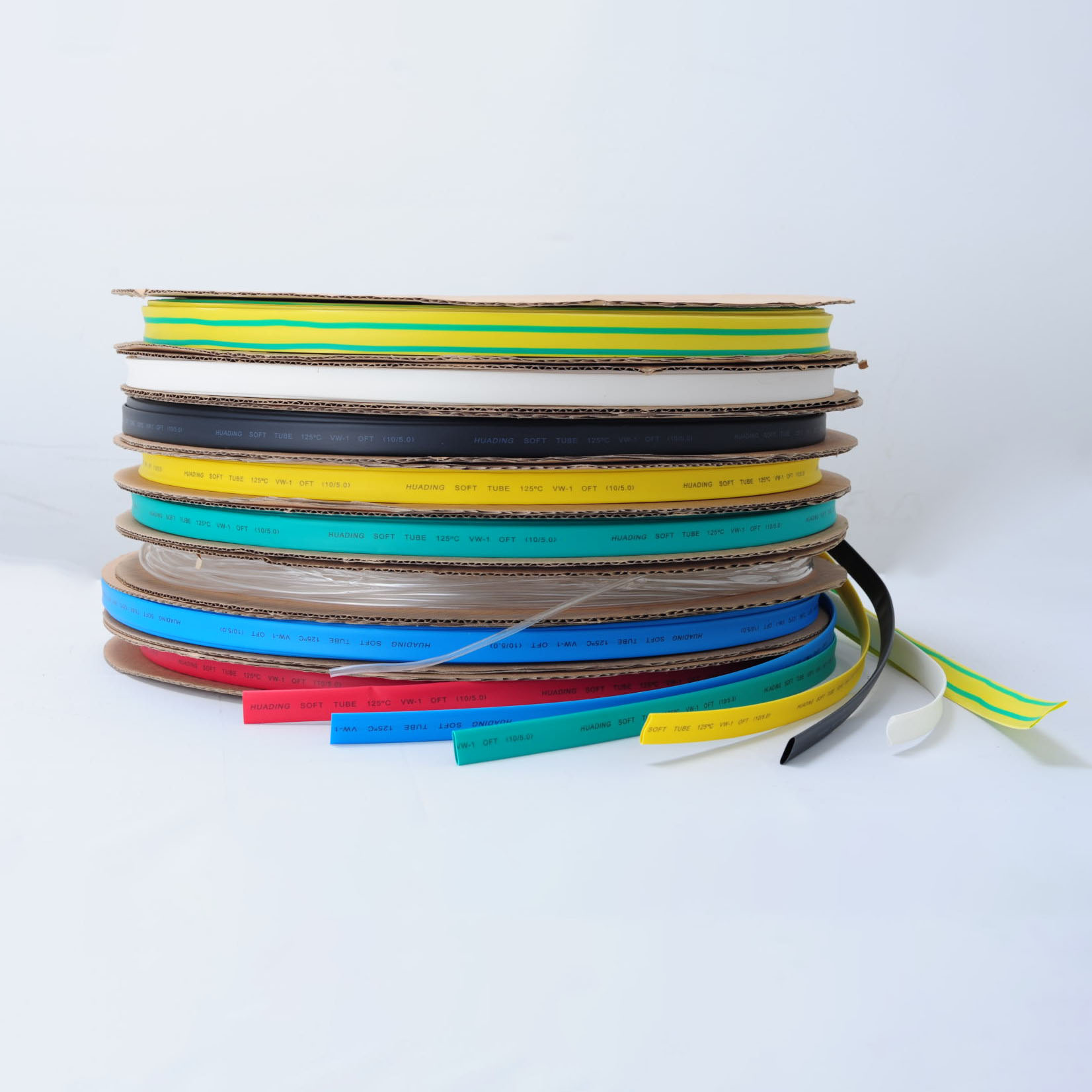

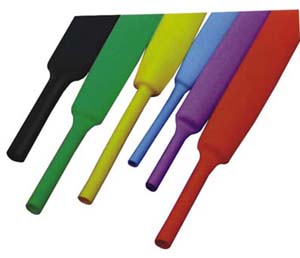

The fire resistant heat shrinkable tubing are provided with the function of low-temperature corrosion, fiexibility fire resistance, insulation and corrosion prevention and so on These are widely used for connecting. Marking and strapping the wire and protect the metal tubes, bars and antnna fram rusting and corroding.
·Minimum shrink temperature:80℃
·Minimum fully recovery temperature:105℃
·Standard cooler: Black、Red、Blue、Yellow、Green、White Other colors are araliable on request
|
Property
|
Method of test
|
Typical data
|
|
Operating Temperature
|
UL224
|
-50to+125℃
|
|
Tensile strengtg
|
ASTM D 2671
|
>14Mpa
|
|
Uitmate elongation
|
ASTM D2671
|
>400%
|
|
Longitudinal shrinkage
|
UL224
|
0±5%
|
|
Eccentricity
|
ASTM D 2671
|
<30%
|
|
Heat aging tensile strength uitimate elongation
|
158℃/168hrs
|
>300%
|
|
Flammability
|
VW-1
|
PASS
|
|
Dielectric strength
|
IEC243
|
>20KV/mm
|
|
Volume resistance
|
IEC93
|
>1014Ω.cm
|
|
Copper absorption
|
UL224
|
DASS
|
|
Water absorption
|
ISO62
|
<0.15％
|
|
RCDRSProduct Dimensions(2:1)
|
|
size(mm)
|
As Supplied(mm)
|
After Recovered(mm)
|
|
I.D
|
Wall thickness
|
I.D
|
Wall thickness
|
|
RCDRS-1.0/0.5
|
1.0
|
0.18
|
0.50
|
0.33
|
|
RCDRS-1.5/0.75
|
1.5
|
0.18
|
0.75
|
0.33
|
|
RCDRS-2.0/1.0
|
2.0
|
0.20
|
1.00
|
0.44
|
|
RCDRS-2.5/1.25
|
2.5
|
0.25
|
1.25
|
0.44
|
|
RCDRS-3.0/1.5
|
3.0
|
0.25
|
1.50
|
0.44
|
|
RCDRS-3.5/1.75
|
3.5
|
0.25
|
1.75
|
0.44
|
|
RCDRS-4.0/2.0
|
4.0
|
0.25
|
2.00
|
0.44
|
|
RCDRS-5.0/2.5
|
5.0
|
0.25
|
2.50
|
0.50
|
|
RCDRS-6.0/3.0
|
6.0
|
0.25
|
3.00
|
0.50
|
|
RCDRS-7.0/3.5
|
7.0
|
0.25
|
3.50
|
0.56
|
|
RCDRS-8.0/4.0
|
8.0
|
0.30
|
4.00
|
0.56
|
|
RCDRS-9.0/4.5
|
9.0
|
0.30
|
4.50
|
0.56
|
|
RCDRS-10.0/5.0
|
10.0
|
0.30
|
5.00
|
0.56
|
|
RCDRS-11.0/5.5
|
11.0
|
0.30
|
5.50
|
0.56
|
|
size(mm)
|
As Supplied(mm)
|
After Recovered(mm)
|
|
I.D
|
Wall thickness
|
I.D
|
Wall thickness
|
|
RCDRS-12/6
|
12.0
|
0.30
|
6.00
|
0.56
|
|
RCDRS-13/6.5
|
13.0
|
0.35
|
6.50
|
0.69
|
|
RCDRS-14/7
|
14.0
|
0.35
|
7.00
|
0.69
|
|
RCDRS-15/7.5
|
15.0
|
0.35
|
7.50
|
0.69
|
|
RCDRS-16/8
|
16.0
|
0.35
|
8.00
|
0.69
|
|
RCDRS-18/9
|
18.0
|
0.40
|
9.00
|
0.77
|
|
RCDRS-20/10
|
20.0
|
0.40
|
10.00
|
0.89
|
|
RCDRS-22/11
|
22.0
|
0.45
|
11.00
|
0.89
|
|
RCDRS-25/12.5
|
25.0
|
0.45
|
12.50
|
0.89
|
|
RCDRS-28/14
|
28.0
|
0.45
|
14.00
|
0.95
|
|
RCDRS-30/15
|
30.0
|
0.45
|
15.00
|
0.95
|
|
RCDRS-35/17.5
|
35.0
|
0.50
|
17.50
|
1.10
|
|
RCDRS-40/20
|
40.0
|
0.50
|
20.00
|
1.10
|
|
RCDRS-50/25
|
50.0
|
0.50
|
25.00
|
1.15
|
|
