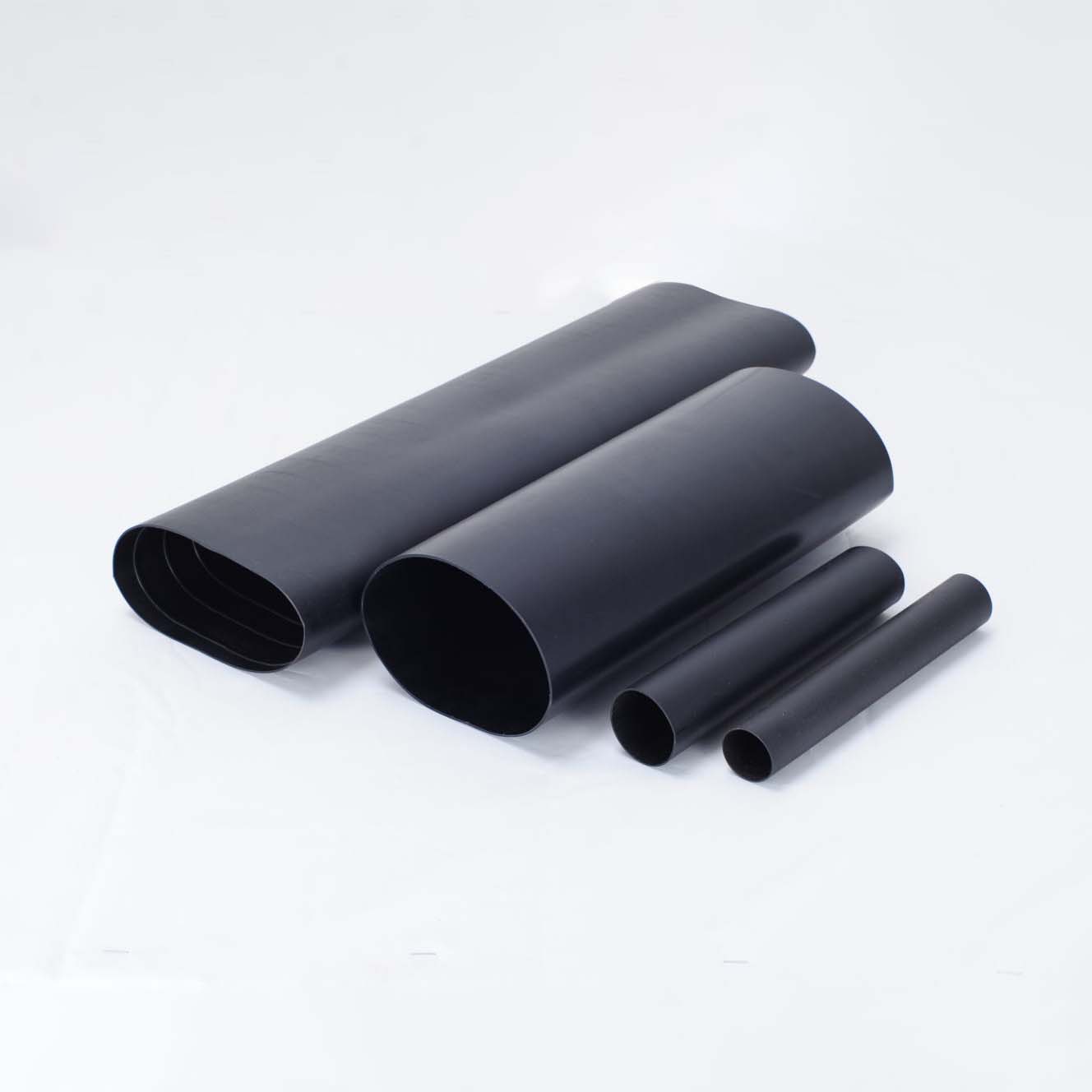

Semi-Conductive Heat Shrinkable Tubing(RCBD)

If you have any questions, please contact us!
■Semi-Conductive Heat Shrinkable Tubing(RCBD)■
Features/applications: RCBD is manufactured with radiation crosslinked polyolefin and suitable for application in power cable accessories specially developed chemical formulation makes the tubing provide affective insulation screen on the high votage cable connectors Minimum shrink temperature:100℃ Minimum fully recovered temperature:120℃

Technical Data

Property

Test Method

Typical Data

Operating temperature

IEC 216

-45℃to-105℃

Tenslie strength

ASTM D 638

>14Mpa

Elongation at break

ASTM D 638

>300%

Water absorption

ISO 62

<0.15%

Elongation at breakafter aging

150℃.168hrs

>200%

Volume resistance

IEC 93

1014Ω.cm

Longifudinal shrinkage

--

0to-10%

Eccentricity

ASTM D 2671

<30%

Product Dimensions

Size mm

As supplied

After recovered

Standard length(m)

Inside diameter(Min)

Inside diameter(Max)

wall thickness(Min)

RCBD 30/12

35

12

2.0

1.0

RCBD 38/16

38

16

2.0

1.0

RCBD 42/18

42

18

2.0

1.0

RCBD 55/20

55

20

2.5

1.0

RCBD 75/25

75

25

2.5

1.0

RCBD 95/35

95

35

2.8

1.0

RCBD 120/45

120

45

3.0

1.0
