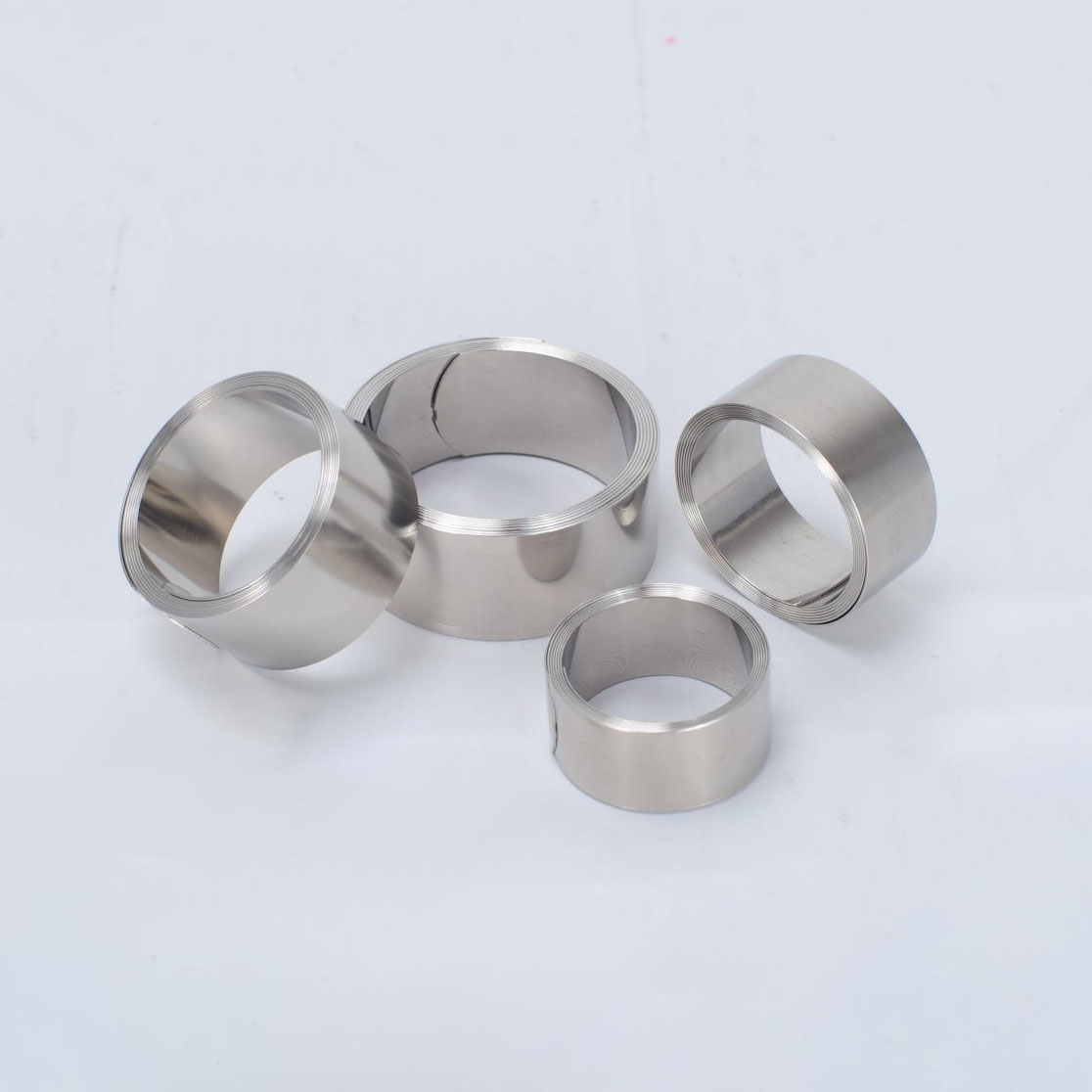

Product range: Power Spring
Material: 62Si2MnA
Thickness: 0.2~2.5mm| Specification | ||||
| Item no. | ID | Thickness | Width | Circle |
| HY-12 | 12mm | 0.20mm | 16mm | 7 |
| HY-14 | 14mm | 0.20mm | 16mm | 7 |
| HY-16 | 16mm | 0.20mm | 16mm | 7 |
| HY-18 | 18mm | 0.25mm | 16mm | 7 |
| HY-20 | 20mm | 0.30mm | 16mm | 7 |
| HY-25 | 25mm | 0.35mm | 16mm | 7 |
| HY-28 | 28mm | 0.40mm | 20mm | 7 |
| HY-30 | 30mm | 0.40mm | 20mm | 7 |
| HY-32 | 32mm | 0.40mm | 20mm | 7 |
| HY-36 | 36mm | 0.40mm | 20mm | 7 |
| HY-40 | 40mm | 0.50mm | 20mm | 7 |
| HY-46 | 46mm | 0.50mm | 20mm | 7 |
| HY-50 | 50mm | 0.60mm | 20mm | 7 |
| HY-60 | 60mm | 0.60mm | 20mm | 7 |
| HY-70 | 70mm | 0.60mm | 20mm | 7 |
| HY-80 | 80mm | 0.70mm | 20mm | 7 |
| HY-90 | 90mm | 0.70mm | 20mm | 7 |
| HY-82 | 100mm | 0.70mm | 20mm | 7 |
| More specification, Welcome to request for quotation! | ||||
