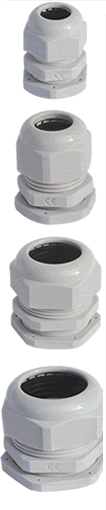

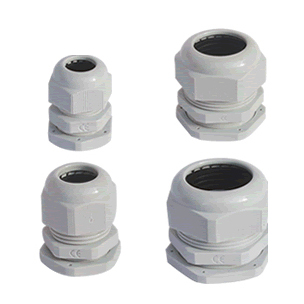

MG plastic cable pack

material：nylon plastic
hermetic seal：nitrile rubber（NBR）
protection degree：IP68-5 pressure（rotate position，with O-seal）
ambient temperature：quiescent state -40^oC to 100^oC，short time 120^oC dynamic -20^oC to 80^oC,short time to 100^oC
supply color：Grey black other color，please inquring.

IP68 dust-proof、water proof testing qualified

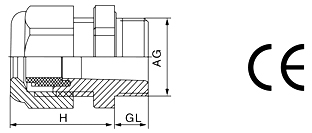

AG(PG)	(mm)	GL(mm)	H(mm)	(mm)
M12×1.5	3-6.5	15	22	16
M12×1.5	2-5	15	22	16
M16×1.5	4-8	15	26	19
M16×1.5	2-6	15	26	19
M18×1.5	5-10	15	27	22
M18×1.5	3-7	15	27	22
M20×1.5	6-12	15	28	24
M20×1.5	5-9	15	28	24
M20×1.5	10-14	15	30	27
M20×1.5	7-12	15	30	27
M22×1.5	10-14	15	30	27
M22×1.5	7-12	15	30	27
M25×1.5	13-18	15	36	33
M25×1.5	9-16	15	36	33
M32×1.5	18-25	15	40	41
M32×1.5	13-20	15	40	41
M40×1.5	22-32	18	48	52/53
M40×1.5	20-26	18	48	52/53
M50×1.5	32-38	18	49	60/61
M50×1.5	25-31	18	49	60/61
M63×1.5	37-44	18	50	65/67
M63×1.5	29-35	18	50	65/67
