■ Features/Applications
Made from high creep resistance, anti-tracking polyolefin compounds and coated with anti-track, weather resistant mastic, The high creep resistance and anti-tracking properties of the products provide maximum operation reliability. Used to provide insulation protection for cable outdoor termination.
·Minimum fully shrink temperature:110℃
|
Property
|
Test Method
|
Typical Data
|
|
Tensile strength
|
ASTM D 2671
|
13Mpa
|
|
Elongation at break
|
ASTM D 2671
|
400%
|
|
Tensile streng after aging(120℃/168hrs)
|
ASTM D 2671
|
350%
|
|
Elongation at break after aging(120℃/168hrs)
|
ASTM D 2671
|
15kV/mm
|
|
Dielectric strength
|
ASTM D 2671
|
Pass
|
|
Tracking resistanse (3.75kv/lhr)
|
ASTM D 2303
|
3.0
|
|
Electric constant
|
IEC 250
|
>1014Ω.cm
|
|
Volume resistance
|
ASTM D 2303
|
＜30%
|
|
Flammability(Oxygen index)
|
IEC 93
|
Pass
|
|
Copper corrosion(120℃/168hrs)
|
ASTM D 2671
|
No cracking
|
|
Cold bend(-40℃/4hrs)
|
ASTM D 2671
|
＜0.15%
|
|
Normal size(mm)
|
Size mm
|
As supplied(mm)
|
After recovered(mm)
|
Big Circle(dia of outside)
|
Color
|
|
|
Inside diameter(Min)
|
Wall thickness(Min)
|
|

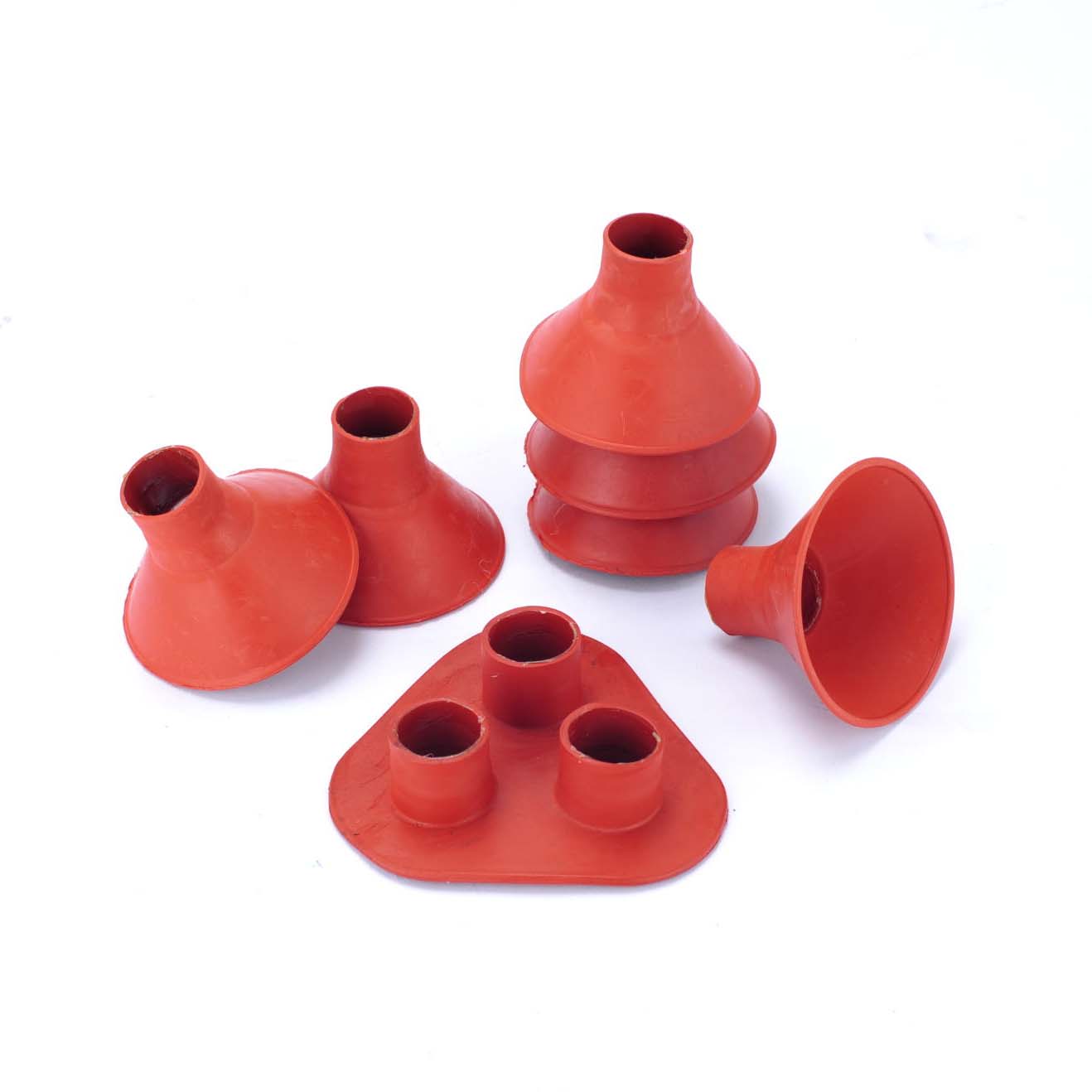

Single hole rain shed
|
RCYQ-30/12
|
30±1
|
＜12
|
3±0.2
|
>100
|
Red Purple
|
|
RCYQ-40/15
|
40±1
|
＜15
|
>105
|
|
RCYQ-50/18
|
50±1
|
＜18
|
>110
|
|
RCYQ-60/23
|
60±1
|
＜23
|
>115
|
|
RCYQ-70/25
|
70±1
|
＜25
|
>120
|
|
3-hole rain shed
|
RCYQ3-30/35
|
30±1
|
＜14
|
|
|
RCQY3-50/20
|
50±1
|
＜20
|
|
|
